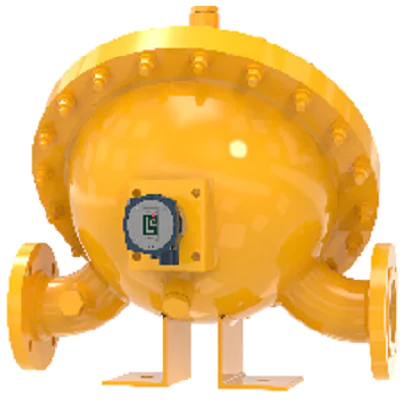

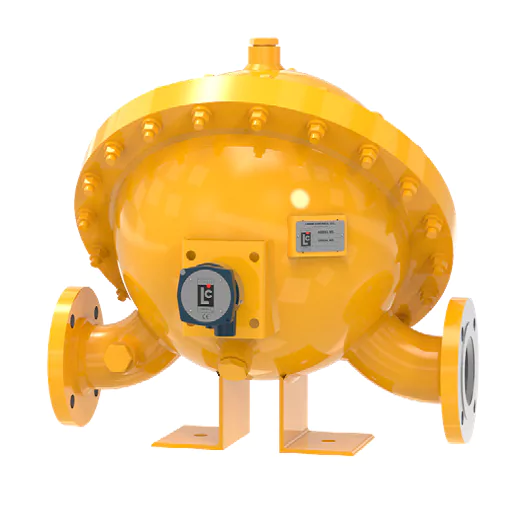

MSAA30 — 3" LC Meter (1,325 LPM)

MSAA30 — 3" LC Meter (1,325 LPM)

Rating: 1325 LPM, 285 psi (19.7 bar, 1965 kPa)
Flange: 3″
Meter Construction: Steel Case, Aluminum Element
Seals: Buna/Viton® as noted by catalog number
Maximum Pressure: 285 psi (as listed by catalog number)
Temperature: -40° to 185° F

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Class 1 Meters
Class 2 Meters
Meter Flow Rates Vs. Viscosity
Class 16 Meters

Meter Classes	Description	Bearing Material
1	Refined petroleum products	Ni-Resist*
16	Alternative fuels and solvents	Carbon

*carbon bearings are standard on some meter sizes of this class, please consult factory.

MSAA30A1 METER WITH REGISTRATION

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	TEMP. COMP.	W&M APPROVAL
MECHANICAL REGISTRATION
MSAA30A1-MECH-NP#2	L-R	WH GAL	VITON®	NO	NIST
MSAA30AT1-MECH-WP#1*	L-R	DEKALITRES	VITON®	YES	OIML

MSAA30P1 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
MSAA30P1-LRG#1	L-R	WH GAL	BUNA	NIST

MSAA30S1 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
MSAA30S1-POD#1	L-R	WH GAL	VITON®	NIST
MSAA30S1-POD#2	L-R	LITRES	VITON®	NIST

MSAA30A2

METER WITH REGISTER

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	TEMP COMP.	WEIGHTS & MEASURES
MECHANICAL REGISTRATION
MSAA30AT2-MECH-NP#1	L-R	285	WH GAL	Y	NIST
MSAA30AT2-MECH-NP#2	R-L	285	WH GAL	Y	NIST

MSAA30S2

MSAA30 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	TEMP COMP.	WEIGHTS & MEASURES
POD (PULSE OUTPUT DEVICE)
MSAA30S2-POD#1	L-R	285	WH GAL	N	NIST

Use the chart below to determine maximum meter flow rate relative to meter bearing material and product viscosity:

Determine the percent of rated capacity at which the meter will be required to operate;
Determine product viscosity at system operating temperature;
Plot the point on the chart where the two lines intersect;
Determine the meter bearing material from construction/application table above and locate the corresponding slope on the chart.

If the plotted point is above the bearing material slope, you are outside the allowable pressure loss for the specified meter and bearing. You should either chose a larger meter, reduce flow rate, or consider alternative bearing materials.

M30K16

METER WITH REGISTER + PRESET VALVE + PRESET + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRESET	VALVE TYPE	VALVE OUTLET	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
MECHANICAL REGISTRATION
M30K16-MECH-NP#1	L-R	LITRES	PTFE	5-DIGIT	MECH	FRONT	STD	40	MECH	NIST
