M5 — 1.5" LC Meter (275 lpm)

Rating: 275 LPM, 150 psi (10.3 bar, 1034 kPa)
Flange: 1-1/2″, 2″
Meter Construction: Aluminum or Stainless Steel
Seals: Buna/Viton®as noted by catalog number
Maximum Pressure: 150psi (as listed by catalog number)
Temperature: -40° to 185° F"

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Meter Classes	Description	Bearing Material
1	Refined petroleum products	Ni-Resist*
2	Aviation and jet fuel	Ni-Resist*
3	Liquid sugars, sweeteners, syrups, vegetable oils	Ni-Resist*
4	Treated waters and solvents where no red metals are allowed	Carbon
14	Crude oil	Ni-Resist
16	General solvents	Carbon

*carbon bearings are standard on some meter sizes of this class, please consult factory.
*Teflon bearings optional on some meter sizes, please consult factory.

M5A1 METER WITH REGISTERATION

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	Software	W&M APPROVAL
LCR.IQ® REGISTRATION
M5A1-LCR.IQ-I#1	L-R	1/10 GAL	BUNA	N/A	NIST
M5A1-LCR.IQ-I#2	L-R	LITRES	BUNA	N/A	INTL
LCR®600 REGISTRATION
M5A1-LCR600-E#1	L-R	1/10 GAL	BUNA	SL600, ST600	NIST
MECHANICAL REGISTRATION
M5A1-MECH-NP#1	L-R	LITRES	VITON®	N/A	OIML
M5A1-MECH-NP#2	R-L	1/10 GAL	BUNA	N/A	NIST
M5A1-MECH-NP#3	L-R	1/10 GAL	BUNA	N/A	NIST
M5A1-MECH-WP#1*	L-R	1/10 GAL	VITON®	N/A	NIST
SETUP FOR ELECTRONIC REGISTRATION
M5A1-SUFE#1	L-R	1/10 GAL	BUNA	N/A	NIST

M5C1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIM.	CHECK VALVE	SOFTWARE	W&M APPROVAL
LCR.IQ® REGISTRATION
M5C1-LCR.IQ-I#1	L-R	1/10 GAL	BUNA	STD	40	MECH	METAL INLET	N/A	NIST
M5C1-LCR.IQ-I#2	R-L	1/10 GAL	BUNA	STD	40	MECH	METAL INLET	N/A	NIST
M5C1-LCR.IQ-I#3	L-R	1/10 GAL	VITON®	STD	40	MECH	METAL INLET	N/A	NIST
M5C1-LCR.IQ-I#4	L-R	LITRES	BUNA	STD	40	MECH	METAL INLET	N/A	NIST
M5C1-LCR.IQ-I#5	L-R	LITRES	BUNA	STD	40	MECH	METAL INLET	N/A	OIML (CERT)

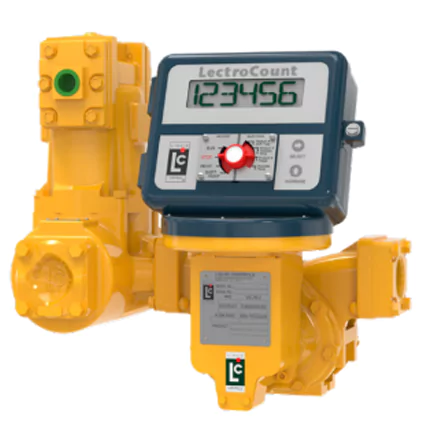

LCR®-II REGISTRATION
M5C1-LCR2-I#1	L-R	1/10 GAL	BUNA	STD	40	MECH	NA	SL200 ST200	NIST
M5C1-LCR2-I#2	L-R	1/10 GAL	VITON®	STD	40	MECH	NA	SL200 ST202	NIST
M5C1-LCR2-I#3	L-R	1/10 GAL	BUNA	STD	20	MECH	NA	SL200 ST200	NIST
LCR®600 REGISTRATION
M5C1-LCR600-I#1	L-R	1/10 GAL	BUNA	STD	40	MECH	NA	SL600 ST600	NIST

M5C1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIM.	CHECK VALVE	SOFTWARE	W&M APPROVAL
MECHANICAL REGISTRATION
M5C1-MECH-NP#1	L-R	LITRES	BUNA	STD	40	MECH	NA	N/A	OIML
M5C1-MECH-NP#2	L-R	1/10 GAL	BUNA	STD	40	MECH	NA	N/A	NIST
M5C1-MECH-NP#3	L-R	LITRES	BUNA	STD	40	MECH	NA	N/A	AUST
M5C1-MECH-NP#4	R-L	LITRES	BUNA	STD	40	MECH	NA	N/A	NIST
M5C1-MECH-NP#5	L-R	1/10 GAL	VITON®	STD	40	MECH	NA	N/A	NIST
M5C1-MECH-NP#7	L-R	LITRES	BUNA	STD	40	MECH	NA	N/A	NIST
M5C1-MECH-NP#8	L-R	LITRES	BUNA	STD	40	MECH	NA	N/A	NIST
POD (PULSE OUTPUT DEVICE)
M5C1-POD#1	L-R	1/10 GAL	BUNA	STD	40	MECH	NA	N/A	NIST
M5C1-POD#2	L-R	LITRES	VITON®	STD	40	MECH	NA	N/A	OIML
SETUP FOR ELECTRONIC REGISTRATION
M5C1-SUFE#1	L-R	LITRES	BUNA	STD	40	MECH	NA	N/A	NIST
M5C1-SUFE#2	L-R	1/10 GAL	BUNA	STD	40	MECH	NA	N/A	NIST

M5E1 METER WITH REGISTER + PRINTER

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRINTER TYPE	W&M APPROVAL
MECHANICAL REGISTRATION
M5E1-MECH-NP#2	L-R	1/10 GAL	BUNA	FACE DOWN	NIST

M5G1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRINTER

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIM.	CHECK VALVE	PRINTER TYPE	W&M APPROVAL
MECHANICAL REGISTRATION
M5G1-MECH-NP#1	L-R	LITRES	BUNA	STD	20	MECH	METAL INLET	FACE DOWN	CAN
M5G1-MECH-NP#2	L-R	1/10 GAL	BUNA	STD	20	MECH	N/A	FACE DOWN	NIST
M5G1-MECH-NP#4	L-R	1/10 GAL	BUNA	STD	80	MECH	N/A	FACE DOWN	NIST
M5G1-MECH-NP#5	L-R	LITRES	BUNA	STD	20	MECH	N/A	FACE DOWN	NIST

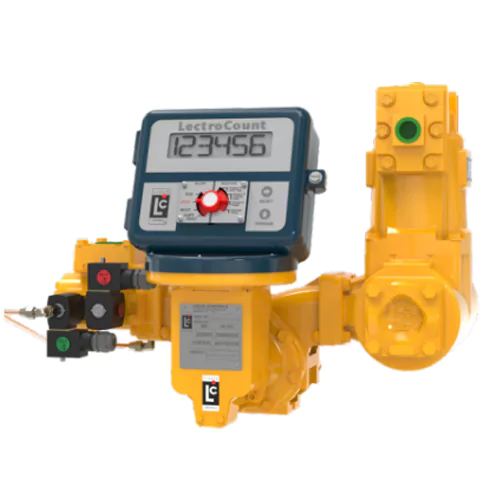

M5I1 METER WITH REGISTER AND PRESET VALVE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	VALVE TYPE	VALVE OUTLET	SOFTWARE	W&M APPROVAL
LCR.iQ® REGISTRATION
M5I1-LCR.IQ-I#1	L-R	LITRES	BUNA	BLOCK (24 VDC)	INLINE	N/A	OIML
M5I1-LCR.IQ-I#2	L-R	WH GAL	BUNA	BLOCK (24 VDC)	INLINE	N/A	OIML

M5A2 METER WITH REGISTER

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	TEMP COMP.	W&M APPROVAL
LCR.iQ® REGISTRATION
M5A2-LCR.IQ-I#1	L-R	285	WH GAL	N	NIST

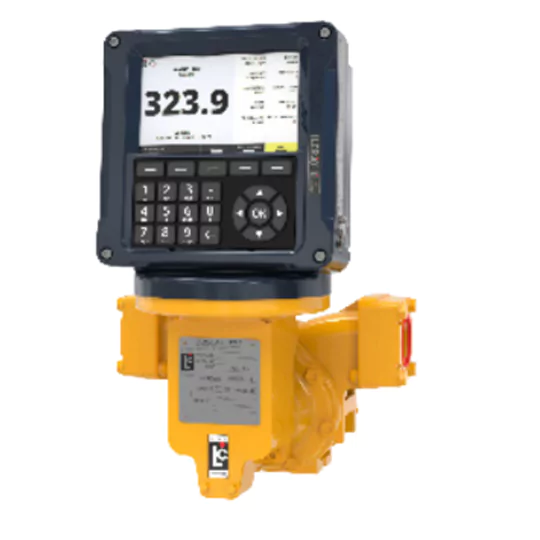

M5AT2-LCR.IQ-I#1	L-R	285	WH GAL	Y	NIST
MECHANICAL REGISTRATION
M5A2-MECH-NP#1	L-R	285	WH GAL	N	NIST
M5A2-MECH-NP#2	L-R	285	1/10 GAL	N	NIST
M5A2-MECH-NP#3	L-R	285	LITRES	N	OIML
M5A2-MECH-NP#4	R-L	285	1/10 GAL	N	NIST
M5A2-MECH-NP#5	L-R	285	LITRES	N	AUST
M5A2-MECH-NP#6	L-R	285	LITRES	N	NIST

M5C2 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	STRAINER TYPE	MESH	AIR ELIM.	TEMP COMP.	W&M APPROVAL
MECHANICAL REGISTRATION
M5C2-MECH-NP#1	L-R	150	WH GAL	STD	40 MESH	MECH	N	NIST
M5C2-MECH-NP#2	R-L	150	1/10 GAL	STD	40 MESH	MECH	N	NIST
M5C2-MECH-NP#3	L-R	150	1/10 GAL	STD	40 MESH	MECH	N	NIST
M5C2-MECH-NP#4	L-R	150	LITRES	STD	40 MESH	MECH	N	OIML
M5C2-MECH-NP#5	L-R	150	LITRES	STD	40 MESH	MECH	N	AUST
M5C2-MECH-WP#1	L-R	150	11/10 GAL	STD	40 MESH	MECH	N	NIST
LESS REGISTER & GEAR PLATE
M5C2-LRG#1	L-R	150	1/10 GAL	STD	40 MESH	MECH	N	NIST

M5P2 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
LESS REGISTER & GEAR PLATE
M5P2-LRG#1	L-R	285	WH GAL	NIST

M5S2 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M5S2-POD#1	L-R	285	WH GAL	NIST
M5S2-POD#2	L-R	286	LITRES	INMETRO (BRAZIL)
M5S2-POD#3	L-R	286	LITRES	OIML
M5S2-POD#4	L-R	286	LITRES	AUST

M5P4 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
LESS REGISTER & GEAR PLATE
M5P4-LRG#1	L-R	1/10 GAL	BUNA
M5P4-LRG#2	L-R	LITRES	BUNA

M5S4 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
POD (PULSE OUTPUT
M5S4-POD#1	L-R	1/10 GAL	BUNA

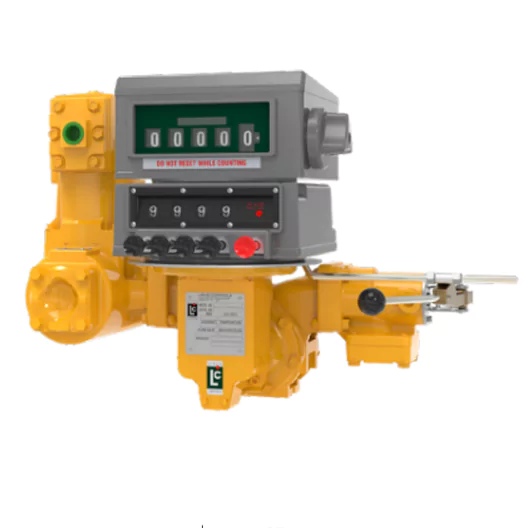

M5I16 METER WITH REGISTER + PRESET + PRESET VALVE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	PRESET	SEALS	VALVE TYPE	VALVE OUTLET	W&M APPROVAL
MECHANICAL REGISTRATION
M5I16-MECH-NP#1	L-R	1/10 GAL	4-DIGIT	PTFE	MECH	UP	NIST
M5I16-MECH-NP#2	L-R	LITRES	4-DIGIT	PTFE	MECH	UP	NIST

M5P16 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
LESS REGISTER & GEAR PLATE
M5P16-LRG#1	L-R	1/10 GAL	PTFE	NIST

M5S16 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M5S16-POD#1	L-R	1/10 GAL	PTFE	NIST

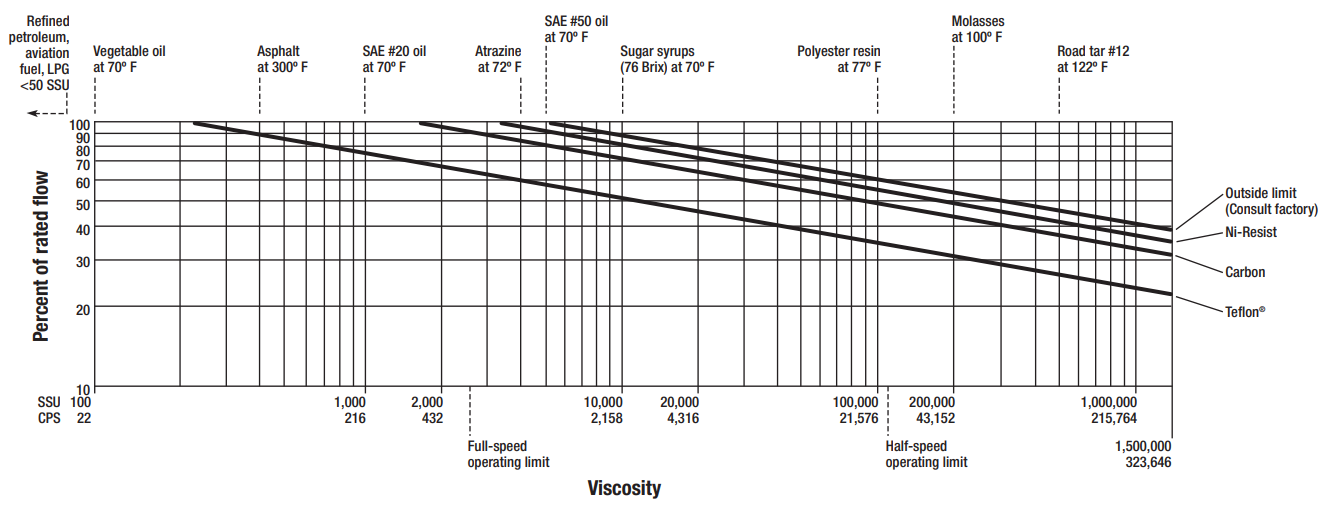

Use the chart below to determine maximum meter flow rate relative to meter bearing material and product viscosity:

Determine the percent of rated capacity at which the meter will be required to operate;
Determine product viscosity at system operating temperature;
Plot the point on the chart where the two lines intersect;
Determine the meter bearing material from construction/application table above and locate the corresponding slope on the chart.

If the plotted point is above the bearing material slope, you are outside the allowable pressure loss for the specified meter and bearing. You should either chose a larger meter, reduce flow rate, or consider alternative bearing materials.
