M30 — 4" LC Meter (1,325 LPM)

Rating: 1325 LPM, 150 psi (10.3 bar, 1034 kPa)
Flange: 4″
Meter Construction: Aluminum
Seals: Buna/Viton® as noted by catalog number
Maximum Pressure: 150psi (as listed by catalog number)
Temperature: -40° to 185° F
Bearing Material Recommended: Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Meter Classes	Description	Bearing Material
1	Refined petroleum products	Ni-Resist*
2	Aviation and jet fuel	Ni-Resist*
14	Crude oil	Ni-Resist*
16	General solvents	Carbon

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M30A1 METER WITH REGISTRATION

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	TEMP. COMP.	W&M APPROVAL
LCR.iQ® REGISTRATION
M30A1-LCR.iQ-I#1	L-R	LITRES	BUNA	N/A	OIMIL
MECHANICAL REGISTRATION
M30A1-MECH-NP#1	L-R	LITRES	BUNA	N/A	NIST
M30A1-MECH-NP#2	L-R	WH GAL	BUNA	N/A	NIST
M30AT1-MECH-NP#1	L-R	WH GAL	BUNA	YES	NIST

M30C1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIM.	CHECK VALVE	TEMP. COMP.	SOFTWARE	W&M APPROVAL
LCR.iQ® REGISTRATION
M30C1-LCR.iQ-I#1	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
LCR®-II REGISTRATION
M30CY1-LCR2-I#1	L-R	WH GAL	BUNA	STD	40	MECH	METAL INLET	YES	SL200 ST200	NIST
LCR®600 REGISTRATION
M30C1-LCR600-I#1	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	SL600 ST600	NIST
MECHANICAL REGISTRATION
M30C1-MECH-NP#2	L-R	IMP GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	OIML
M30C1-MECH-NP#3	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	OIML
M30C1-MECH-NP#4	L-R	DEKALITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	OIML
M30C1-MECH-NP#5	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	CAN
M30C1-MECH-NP#6	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M30C1-MECH-NP#9	L-R	LITERS	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
SET UP FOR ELECTRONICS
M30C1-SUFE#1	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M30C1-SUFE#2*	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST

*INCLUDES METAL INLET CHECK

M30G1 METER WITH REGISTER + PRINTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRESET TYPE	VALVE TYPE	VALVE OUTLET	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
MECHANICAL REGISTRATION
M30G1-MECH-NP#2	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST

M30K1

METER WITH REGISTER + PRESET VALVE + PRESET + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRESET TYPE	VALVE TYPE	VALVE OUTLET	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
MECHANICAL REGISTRATION
M30K1-MECH-NP#2	L-R	IMP GAL	BUNA	5-DIGIT	MECH	REAR	STD	40	MECH	OIML
M30K1-MECH-NP#4	L-R	LITRES	VITON®	5-DIGIT	MECH	REAR	STD	40	MECH	OIML
M30K1-MECH-NP#8	L-R	LITRES	BUNA	5-DIGIT	MECH	REAR	STD	40	MECH	NIST

M30P1

METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
M30P1-LRG#1	L-R	LITRES	VITON®	OIML
M30P1-LRG#2	L-R	WH GAL	VITON®	NIST
M30P1-LRG#3	L-R	LITRES	VITON®	CAN
M30P1-LRG#4	L-R	WH GAL	BUNA	NIST
M30P1-LRG#5	L-R	LITRES	BUNA	CAN

M30S1

METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M30S1-POD#1	L-R	WH GAL	BUNA	NIST
M30S1-POD#2	L-R	LITRES	BUNA	CAN
M30S1-POD#3	L-R	LITRES	VITON®	CAN

M30A2 M30 METER WITH REGISTER

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	TEMP COMP.	W&M APPROVAL
LCR.iQ® REGISTRATION
M30A2-LCR.IQ-I#1	L-R	150	WH GAL	N	NIST
MECHANICAL REGISTRATION
M30A2-MECH-NP#2	L-R	150	WH GAL	N	NIST
M30A2-MECH-NP#5***	L-R	150	DEKALITRES	N	OIML
M30AT2-MECH-NP#1	R-L	150	WH GAL	Y	NIST
M30AT2-MECH-NP#2	L-R	150	WH GAL	Y	NIST
M30AT2-MECH-NP#3	L-R	150	LITRES	Y	NIST
M30AT2-MECH-NP#4	R-L	150	LITRES	Y	NIST
M30AT2-MECH-WP#2**	R-L	150	WH GAL	Y	NIST

**PROVIDED WITH 100 PPR SOLID STATE PULSER

***VITON® ELASTOMERS

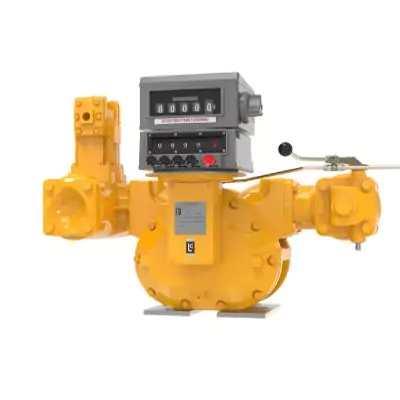

M30C2 M30 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	STRAINER TYPE	MESH	AIR ELIM.	TEMP COMP.	W&M APPROVAL
MECHANICAL REGISTRATION
M30CT2-MECH-NP#1	L-R	150	LITRES	STD	40	MECH	Y	OIML
M30C2-MECH-NP#1	L-R	150	WH GAL	STD	40	MECH	N	NIST

M30P2

M30 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
M30P2-LRG#1	L-R	150	WH GAL	NIST

M30S2

M30 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M30S2-POD#1	L-R	150	LITRES	CAN

M40A2

METER WITH REGISTERATION

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	TEMP COMP.	W&M APPROVAL
LCR.iQ® REGISTRATION
M40A2-LCR.IQ-I#1	L-R	150	WH GAL	N	NIST
M40A2-LCR.IQ-E#1*	L-R	150	LITRES	N	OIML
M40AT2-LCR.IQ-I#1	L-R	150	WH GAL	Y	NIST
MECHANICAL REGISTRATION
M40A2-MECH-NP#1	L-R	150	WH GAL	N	NIST
M40AT2-MECH-NP#1	L-R	150	WH GAL	Y	NIST
SETUP FOR ELECTRONIC REGISTRATION
M40A2-SUFE#1	L-R	150	WH GAL	N	NIST

M40C2 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	STRAINER TYPE	MESH	W&M APPROVAL
MECHANICAL REGISTRATION
M40C2-MECH-NP#1	L-R	150	WH GAL	STD	40	NIST

M40E2 METER WITH REGISTER + PRINTER

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	MESH	W&M APPROVAL
MECHANICAL REGISTRATION
M40E2-MECH-NP#1	L-R	150	WH GAL	N	NIST

M40P2 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
M40P2-LRG#2	L-R	150	WH GAL	NIST

M40S2 METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M40S2-POD#1	L-R	150	WH GAL	NIST

M30A14

METER WITH REGISTER

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
LCR.iQ® REGISTRATION
M30A14-MECH-NP#1	L-R	WH. GAL	VITON
M30A14-MECH-NP#2	L-R	DEKALITRES	VITON

M30C14

METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL	STRAINER TYPE	MESH	AIR ELIM.
MECHANICAL REGISTRATION
M30C14-MECH-NP#1*	L-R	WH. GAL	VITON	STANDARD	40	MECH
M30C14-MECH-NP#2*	L-R	LITRES	VITON	STANDARD	20	MECH

*SUPPLIED WITH 1-FOOT HEAT EXTENSION

M30P14

METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
LESS REGISTER & GEAR PLATE
M30P14-LRG#1	L-R	WH. GAL	VITON

M30S14

METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
POD (PULSE OUTPUT DEVICE)
M30S14-POD#1	L-R	WH. GAL	VITON

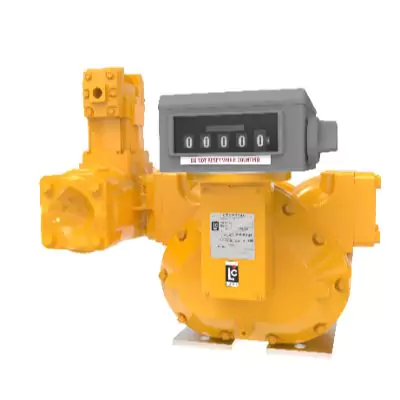

M30K16

METER WITH REGISTER + PRESET VALVE + PRESET + STRAINER + AIR ELIMINATOR

CATALOG NUMBER

FLOW

UNIT OF MEASURE

SEALS

PRESET

VALVE TYPE

VALVE OUTLET

STRAINER TYPE

MESH

AIR ELIM.

W&M APPROVAL

MECHANICAL REGISTRATION

M30K16-MECH-NP#1

L-R

LITRES

PTFE

5-DIGIT

MECH

FRONT

STD

MECH

NIST

M30S16

METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
M30S16-POD#1	L-R	LITRES	PTFE	OIML

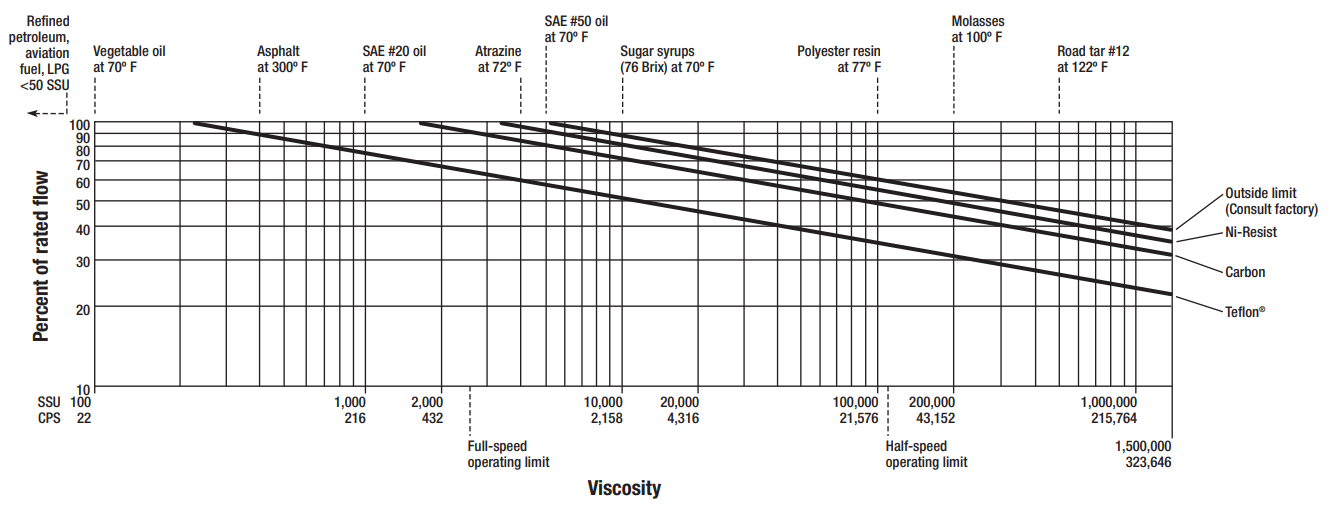

Use the chart below to determine maximum meter flow rate relative to meter bearing material and product viscosity:

Determine the percent of rated capacity at which the meter will be required to operate;
Determine product viscosity at system operating temperature;
Plot the point on the chart where the two lines intersect;
Determine the meter bearing material from construction/application table above and locate the corresponding slope on the chart.

If the plotted point is above the bearing material slope, you are outside the allowable pressure loss for the specified meter and bearing. You should either chose a larger meter, reduce flow rate, or consider alternative bearing materials.
