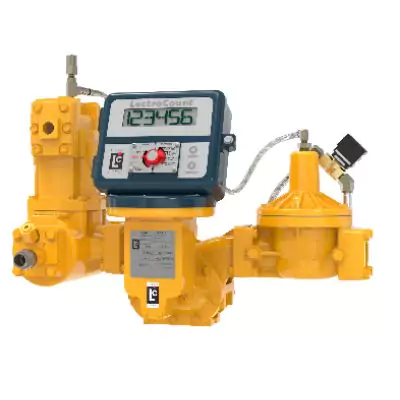

MA5 — 1.5" LC Meter (227 LPM)

Rating: 227 LPM, 350 psi (24 bar, 2414 kPa)
Flange: 1.5″, 2″
Meter Construction: Aluminum
Seals: Buna N
Maximum Pressure: 350 psi (as listed by catalog number)
Temperature: -40° to 160° F (-40° to 71.1° C)

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Class 10 Meters
Dimension

Meter Class	Description	Bearing Material
10	Liquified petroleum gas (LPG) such as propane	Carbon

MA5C10

METER WITH REGISTER + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK	SOFTWARE	W&M APPROVAL
LCR.iQ® REGISTRATION
MA5CY10-LCR.IQ-I#1	L-R	LITERS	1" Differential & 12VDC	1"	150	Mech Vapor Eliminator	Y	Y	N/A	NIST
LCR®-II REGISTRATION
MA5CY10-LCR2-I#1	L-R	1/10 GAL	2" Differential & 12VDC Solenoid	2"	150	Mech Vapor Eliminator	Y	Y	SL201 ST204	NIST
MA5CY10-LCR2-I#2	L-R	LITERS	2" Differential & 12VDC Solenoid	2"	150	Mech Vapor Eliminator	Y	Y	SL201 ST204	NIST
MA5CY10-LCR2-I#4 (Cl 1, Div 1)	L-R	LITERS	2" Differential & 12VDC Solenoid	2"	151	Mech Vapor Eliminator	Y	Y	SL200 ST200	NIST
MECHANICAL REGISTRATION
MA5CX10-MECH-NP#1	L-R	LITERS	2" Differential	2"	150	Mech Vapor Eliminator	N	Y	N/A	NIST
MA5CX10-MECH-NP#2	L-R	1/10 GAL	2" Differential	2"	150	Mech Vapor Eliminator	N	Y	N/A	NIST
MA5CY10-MECH-NP#1	L-R	1/10 GAL	2" Differential	2"	150	Mech Vapor Eliminator	Y	Y	N/A	NIST
MA5CY10-MECH-NP#2	L-R	LITERS	2" Differential	2"	150	Mech Vapor Eliminator	Y	Y	N/A	OIML

MA5G10

METER WITH REGISTER + PRINTER + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK	PRINTER STYLE	W&M APPROVAL
MECHANICAL REGISTRATION
MA5GY10-MECH-NP#1	L-R	LITERS	2" Differential	2"	150	Mech Vapor Eliminator	Y	Y	FACE UP	NIST
MA5GY10-MECH-NP#3	L-R	1/10 GAL	2" Differential	2"	150	Mech Vapor Eliminator	Y	Y	FACE UP	NIST

MA5K10 METER WITH REGISTER + PRESET VALVE + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK	SOFTWARE	W&M APPROVAL
LCR®-II REGISTRATION
MA5KY10-LCR2-I#1	L-R	1/10 GAL	2" 2-Stage Preset Valve, 12VDC	2"	150	Mech Vapor Eliminator	Y	Y	SL200 ST200	NIST
