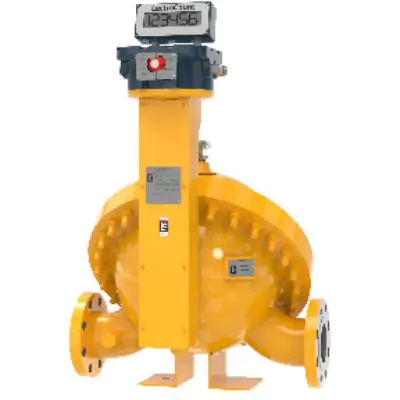

LC-Meter-MSA30A10

LC-Meter-MSA30A10

MSA30 — 3" LC Meter (1,325 LPM)

Rating: 1325 LPM, 300 psi (20.7 bar, 2068 kPa)
Flange: 3″
Meter Construction: Aluminum with Steel Case
Seals: Buna
Flanges: 300# ANSI RF flanges
Maximum Pressure: 350 psi
Temperature: -40° to 185° F

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Class 10 Meters

Meter Class	Description	Bearing Material
10	LPG	Carbon

MSA30A10 METER WITH REGISTERATION
CATALOG NUMBER	FLOW	UNIT OF MEASURE	TEMP COMP.	SOFTWARE	W&M APPROVAL
LCR®-II REGISTRATION (CLASS 1, DIV. 1 RATED)
MSA30AT10-LCR2-I#1	L-R	WH. GAL	Y	SL200 ST202	NIST
MSA30AT10-LCR2-I#2	L-R	LITERS	Y	SL200 ST200	CAN
SET UP FOR ELECTRONIC REGISTRATION
MSA30A10-SUFE#1	L-R	WH. GAL	N	N/A	NIST

MSA30E10 METER WITH REGISTER AND PRINTER
CATALOG NUMBER	FLOW	UNIT OF MEASURE	TEMP COMP.	W&M APPROVAL
MECHANICAL REGISTRATION
MSA30ET10-MECH-NP#1	L-R	WH. GAL	Y	NIST

MSA30P10

METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	W&M APPROVAL
LESS REGISTER & GEAR PLATE
MSA30P10-LRG#1	L-R	WH. GAL	NIST
MSA30P10-LRG#1	L-R	LITERS	CAN

MSA30S10

METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	W&M APPROVAL
POD (PULSE OUTPUT DEVICE)
MSA30S10-POD#1	L-R	WH. GAL	NIST
MSA30S10-POD#2	L-R	LITERS	CAN
