M15 — 3" LC Meter (1,000 LPM)

Rating: 1,000 LPM, 150 psi (10.3 bar, 1034 kPa)
Flange: 1.5″, 2″
Meter Construction: Aluminum or Stainless Steel
Seals: Buna/Viton® as noted by catalog number
Maximum Pressure: 150psi (as listed by catalog number)
Temperature: -40° to 185° F
Bearing Material Recommended: Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Meter Classes	Description	Bearing Material
1	Refined petroleum products	Ni-Resist*
2	Aviation and jet fuel	Ni-Resist*
3	Liquid sugars, sweeteners, syrups, vegetable oils	Ni-Resist*
4	Treated waters and solvents where no red metals are allowed	Carbon
16	General solvents	Carbon

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M15A1
METER WITH REGISTRATION

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	SOTWARE	W&M APPROVAL
LCR®-II REGISTRATION
M15A1-LCR2-I#1	L-R	WH GAL	BUNA	SL200 ST200	NIST
MECHANICAL REGISTRATION
M15A1-MECH-NP#1	L-R	WH GAL	BUNA	N/A	NIST
M15A1-MECH-NP#2	L-R	DEKALITRES	BUNA	N/A	NIST
M15A1-MECH-NP#3	L-R	LITRES	BUNA	N/A	NIST
M15A1-MECH-WP#1*	L-R	WH GAL	BUNA	N/A	NIST
SET UP FOR ELECTRONICS
M15A1-SUFE#1	L-R	WH GAL	BUNA	N/A	NIST

M15C1
M15 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIMINATOR	CHECK VALVE	TEMP. COMP.	SOFTWARE	W&M
LCR.iQ® REGISTRATION
M15C1-LCR.iQ-I#1	L-R	LITRES	VITON®	HI CAP	20	MECH	N/A	N/A	N/A	NIST
M15C1-LCR.iQ-I#2	L-R	LITRES	BUNA	HI CAP	20	MECH	N/A	N/A	N/A	OIML
M15C1-LCR.iQ-I#3	L-R	LITRES	VITON®	STD	40	MECH	N/A	N/A	N/A	NIST

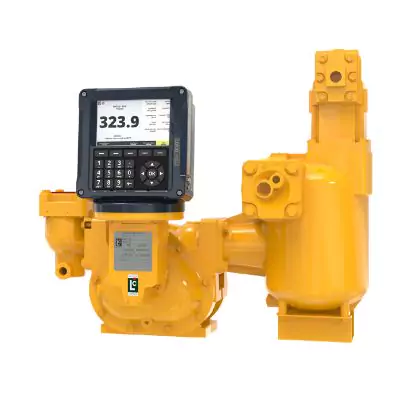

M15CY1-LCR.iQ-I#1	L-R	LITRES	BUNA	HI CAP	40	MECH	N/A	YES	N/A	CAN
M15CY1-LCR.iQ-I#2	R-L	LITRES	BUNA	HI CAP	40	MECH	N/A	YES	N/A	CAN
LCR®-II REGISTRATION
M15C1-LCR2-I#1	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	SL201 ST204	NIST
M15C1-LCR2-I#2	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	SL200 ST200	NIST
M15CY1-LCR2-I#1	L-R	LITRES	BUNA	HI CAP	40	MECH	N/A	YES	SL200 ST200	CAN
M15CY1-LCR2-E#1	L-R	LITRES	BUNA	HI CAP	40	MECH	N/A	YES	SL200 ST201	CAN
M15CY1-LCR2-E#2	R-L	LITRES	BUNA	HI CAP	20	MECH	N/A	YES	SL200 ST200	CAN
LCR®600 REGISTRATION
M15CX1-LCR600-I#1	L-R	1/10 GAL	BUNA	HI CAP	40	MECH	METAL INLET	N/A	SL600 ST600	NIST
M15CX1-LCR600-I#2	L-R	1/10 GAL	BUNA	STD	40	MECH	METAL INLET	N/A	SL600 ST662	NIST

M15C1 CONTINUED
METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIMINATOR		TEMP. COMP.	SOFTWARE	W&M
MECHANICAL REGISTRATION
M15C1-MECH-NP#1	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-MECH-NP#2	L-R	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-MECH-NP#3	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	OIML
M15C1-MECH-NP#4	L-R	IMP GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	OIML
M15C1-MECH-NP#5	L-R	1/10 GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-MECH-NP#8	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-MECH-NP#9	L-R	1/10 GAL	VITON®	HI CAP	40	MECH	N/A	N/A	N/A	NIST
M15C1-MECH-NP#10	R-L	1/10 GAL	VITON®	HI CAP	40	MECH	N/A	N/A	N/A	NIST
M15CX1-MECH-NP#2	L-R	LITERS	VITON®	HI CAP	40	MECH	N/A	N/A	N/A	OIML
M15CX1-MECH-NP#3	L-R	LITRES	BUNA	HI CAP	40	MECH	N/A	N/A	N/A	OIML
M15CX1-MECH-NP#4	L-R	LITRES	VITON®	STD	40	MECH	N/A	N/A	N/A	OIML
LESS MECHANICAL REGISTRATION WITH GEAR PLATE
M15C1-LR#1	L-R	1/10 GAL	VITON®	HI CAP	40	MECH	N/A	N/A	N/A	NIST
POD (PULSE OUTPUT DEVICE)
M15C1-POD#1	L-R	1/10 GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-POD#2	L-R	1/10 GAL	BUNA	HI CAP	40	MECH	METAL INLET	N/A	N/A	NIST
M15CX1-POD#1	R-L	1/10 GAL	BUNA	HI CAP	40	OPTICAL	N/A	N/A	N/A	NIST
SETUP FOR ELECTRONICS
M15C1-SUFE#1	L-R	LITRES	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST
M15C1-SUFE#2	R-L	WH GAL	BUNA	STD	40	MECH	N/A	N/A	N/A	NIST

M15G1
METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRINTER

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIM.	CHECK VALVE	PRINTER TYPE	W&M APPROVAL
MECHANICAL REGISTRATION
M15G1-MECH-NP#1	L-R	WH GAL	BUNA	STD	40	MECH	N/A	FACE DOWN	NIST
M15G1-MECH-NP#2	L-R	WH GAL	VITON®	STD	40	MECH	METAL INLET	FACE DOWN	NIST

M15K1
METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRESET VALVE

CATALOG NUMBER

FLOW

UNIT OF MEASURE

SEALS

PRESET TYPE

REGISTER MOUNTED PULSER

VALVE TYPE

VALVE OUTLET

STRAINER TYPE

MESH

AIR ELIM.

CHECK VALVE

TEMP. COMP.

SOFT WARE

W&M APPROVAL

LCR.iQ® REGISTRATION

M15K1-LCR.IQ-I#1

R-L

1/10 GAL

BUNA

BLOCK

INLINE

HI CAP

OPTICAL

SOFT OUTLET

N/A

NIST

M15K1-LCR.IQ-I#2

L-R

1/10 GAL

BUNA

BLOCK

INLINE

HI CAP

OPTICAL

SOFT OUTLET

N/A

NIST

M15KT1-LCR.iQ-I#1

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

SOFT INLET

YES

N/A

CAN

M15KT1-LCR.iQ-I#2

R-L

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

MECH

METAL INLET

YES

N/A

CAN

M15KT1-LCR.iQ-I#3

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

METAL INLET

YES

N/A

CAN

M15KT1-LCR.iQ-I#4

R-L

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

SOFT OUTLET

YES

N/A

CAN

LCR®-II REGISTRATION

M15K1-LCR2-I#2

L-R

1/10 GAL

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

N/A

SL200 ST202

NIST

M15K1-LCR2-I#3

L-R

1/10 GAL

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

METAL INLET

N/A

SL200 ST258

NIST

M15K1-LCR2-I#4

L-R

1/10 GAL

VITON®

N/A

BLOCK

INLINE

HI CAP

OPTICAL

METAL INLET

N/A

SL200 ST258

NIST

M15K1-LCR2-I#5

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

MECH

N/A

SL201 ST204

OIML

M15KT1-LCR2-I#1

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

SOFT OUTLET

YES

SL200 ST201

CAN

M15KT1-LCR2-I#2

R-L

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

MECH

METAL INLET

YES

SL200 ST201

CAN

M15KT1-LCR2-I#3

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

METAL INLET

YES

SL200 ST201

CAN

M15KT1-LCR2-I#4

R-L

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

OPTICAL

N/A

YES

SL200 ST201

CAN

M15KT1-LCR2-I#5

L-R

LITRES

BUNA

N/A

BLOCK

UP (ELBOW)

HI CAP

OPTICAL

SOFT OUTLET

YES

SL200 ST201

CANADA

LCR®600 REGISTRATION

M15K1-LCR600-I#1

R-L

1/10 GAL

BUNA

N/A

EP15

FRONT

HI CAP

OPTICAL

METAL INLET

N/A

SL600 ST662

NIST

M15K1-LCR600-I#3

L-R

1/10 GAL

BUNA

N/A

EP15

FRONT

HI CAP

OPTICAL

METAL INLET

N/A

SL600 ST662

NIST

M15K1-LCR600-I#5

L-R

LITRES

BUNA

N/A

BLOCK

INLINE

HI CAP

MECH

N/A

SL600 ST600

OIML

MECHANICAL REGISTRATION

M15K1-MECH-NP#1

L-R

LITRES

BUNA

5-DIGIT

N/A

MECH

DOWN

STD

MECH

N/A

OIML

M15K1-MECH-NP#2

L-R

WH GAL

BUNA

4-DIGIT

N/A

MECH

FRONT

STD

MECH

N/A

NIST

M15K1-MECH-NP#3

L-R

WH GAL

BUNA

4-DIGIT

N/A

MECH

REAR

STD

MECH

N/A

NIST

M15K1-MECH-NP#4

L-R

1/10 GAL

BUNA

4-DIGIT

N/A

MECH

REAR

STD

MECH

N/A

NIST

M15N1
METER WITH REGISTRATION + PRESET VALVE + PRESET + STRAINER + AIR ELIMINATOR + PRINTER

CATALOG NUMBER

FLOW

UNIT OF MEASURE

SEALS

PRESET TYPE

VALVE TYPE

VALVE OUTLET

STRAINER TYPE

MESH

AIR ELIM

PRINTER TYPE

W&M

MECHANICAL REGISTRATION

M15N1-MECH-NP#1

L-R

WH GAL

BUNA

4-DIGIT

MECH

REAR

STD

MECH

FACE DOWN

NIST

M15N1-MECH-NP#6

L-R

WH GAL

BUNA

4-DIGIT

MECH

REAR

STD

MECH

FACE DOWN

NIST

M15N1-MECH-WP#2*

L-R

WH GAL

BUNA

4-DIGIT

MECH

FRONT

HI CAP

MECH

FACE DOWN

NIST

M15P1
METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
M15P1-LRG#1	L-R	WH GAL	BUNA	NIST
M15P1-LRG#2	L-R	LITRES	BUNA	OIML
M15P1-LRG#4	L-R	LITRES	BUNA	CAN

M15A2 METER WITH REGISTER
CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	W&M APPROVAL
MECHANICAL REGISTRATION
M15A2-MECH-NP#1	L-R	150	WH GAL	NIST
M15A2-MECH-NP#2*	L-R	150	WH GAL	NIST
M15A2-MECH-NP#3	L-R	150	LITRES	NIST
VITON® ELASTOMERS*

M15C2 METER WITH REGISTER + STRAINER + AIR ELIMINATOR
CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
LCR.iQ® REGISTRATION
M15C2-LCR.IQ-I#1	R-L	275	WH GAL	STD	40	MECH	NIST
MECHANICAL REGISTRATION
M15C2-MECH-NP#1	L-R	150	WH GAL	STD	40	MECH	NIST
M15C2-MECH-NP#2	L-R	150	1/10 GAL	STD	40	MECH	NIST
M15C2-MECH-NP#3	R-L	150	WH GAL	STD	40	MECH	NIST

M15K2 METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRESET VALVE
CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	PRESET TYPE	VALVE TYPE	VALVE OUTLET	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
MECHANICAL REGISTRATION
M15K2-MECH-NP#3	L-R	150	LITRES	5-DIGIT	MECH	FRONT	STD	40	MECH	NIST

M15P2 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	PRESSURE	UNIT OF MEASURE	VALVE	W&M APPROVAL
LESS REGISTER & GEAR PLATE
M15P2-LRG#1*	L-R	275	LITRES	N/A	AUST
M15P2-LRG#2	L-R	275	WH GAL	N/A	NIST

M15S3
METER WITH POD (PULSE OUTPUT DEVICE)

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL
POD (PULSE OUTPUT DEVICE)
M15S3-POD#1	L-R	1/10 GAL	BUNA

M15K4
METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRESET VALVE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEAL	PRESET	VALVE	STRAINER TYPE	MESH	AIR ELIM.	SOFTWARE
MECHANICAL REGISTRATION
M15K4-MECH-NP#1	L-R	GALLONS	PTFE	5-DIGIT	OUTLET REAR	STANDARD	40	MECH	N/A

M15A16 METER WITH REGISTRATION
CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
MECHANICAL REGISTRATION
M15A16-MECH-NP#1	L-R	WH GAL	PTFE	NIST

M15C16 METER WITH REGISTER + STRAINER + AIR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	STRAINER TYPE	MESH	AIR ELIMINATOR	SOFTWARE	W&M APPROVAL
LCR.iQ® REGISTRATION
M15C16-LCR.iQ-I#1	L-R	LITRES	PTFE	STD	40	MECH	N/A	NIST
LCR® II REGISTRATION
M15C16-LCR2-I#1	L-R	1/10 GAL	PTFE	STD	40	MECH	SL200 ST200	NIST
MECHANICAL REGISTRATION
M15C16-MECH-NP#1	L-R	WH GAL	PTFE	STD	40	MECH		NIST
M15C16-MECH-NP#2	L-R	LITRES	PTFE	STD	40	MECH		OIML

M15I16 METER WITH REGISTER + PRESET + PRESET VALVE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRESET	VALVE TYPE	W&M APPROVAL
MECHANICAL REGISTRATION
M15I16-MECH-NP#1	L-R	WH GAL	PTFE	4-DIGIT	MECH	NIST

M15K16 M15 METER WITH REGISTER + PRESET + PRESET VALVE + STRAINER + AIR ELIM.

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	PRESET	VALVE TYPE	STRAINER TYPE	MESH	AIR ELIM.	W&M APPROVAL
MECHANICAL REGISTRATION
M15K16-MECH-NP#2	L-R	WH GAL	PTFE	5-DIGIT	MECH	STD	40	MECH	NIST

M15P16 METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	SEALS	W&M APPROVAL
LESS REGISTER & GEAR PLATE
M15P16-LRG#1	L-R	WH GAL	PTFE	NIST

Use the chart below to determine maximum meter flow rate relative to meter bearing material and product viscosity:

Determine the percent of rated capacity at which the meter will be required to operate;
Determine product viscosity at system operating temperature;
Plot the point on the chart where the two lines intersect;
Determine the meter bearing material from construction/application table above and locate the corresponding slope on the chart.

If the plotted point is above the bearing material slope, you are outside the allowable pressure loss for the specified meter and bearing. You should either chose a larger meter, reduce flow rate, or consider alternative bearing materials.
