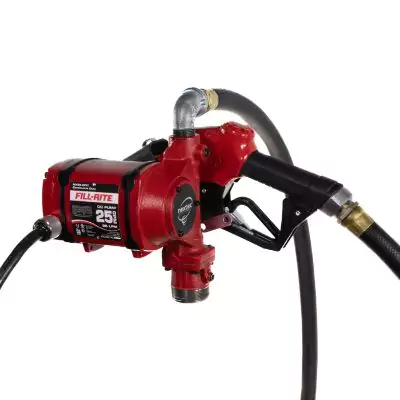

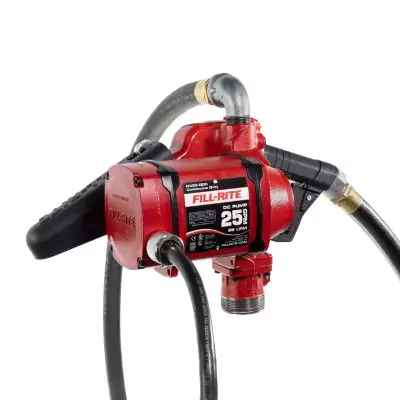

Fill-Rite NX25-DDCNB-AA (12/24V DC 25 LPM) Continuous Duty Fuel Transfer Pump with Nozzle

The continuous duty fuel transfer pumps from Fill-Rite's NX25-DDC Series are extremely low-cost to acquire and operate.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Performance
Accessories
Dimensions

The NX25-DDCNB-AA model is a 12/24V DC, 25 GPM premiere fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, and installation components.

Unmatched Performance - Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
Continuous Operation – brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime
Flexible Power Input – dual voltage design allows you to power from 12-24V DC batteries without worrying of burning up the motor
Energy Efficient - Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
Ultra-Lightweight – pump weighs 60% less at only 25 pounds, making installation faster and strain free
Reduced Maintenance Costs — 75% reduction in common field repair costs through patented design and robust construction

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly manufactured in the USA, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.

Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

Max Flowrate	25 GPM / 95 LPM
Flowrate Range	0-25GPM
Inlet / Outlet Thread Size (in.)	1.25 " / 1 "
Mounting Size / Thread / Type	2" / NPT / Electric
Duty Cycle	Continuous Duty
Motor Power	0.33
Power Type	DC
Suction Lift (ft.)	12 '
Dry Vacuum (in. Hg)	11
Max Discharge Pressure	21 PSI
Discharge Head (ft.)	48 '
Max Operating Pressure (PSI)	25
Strainer Mesh Size (micron)	20 x 20 x .008”

Suction Hose	None
Discharge Hose	1” X 18’ Hose with Static Ground Wire
Nozzle	1” Ultra Hi-Flow Automatic Diesel Nozzle (Red)
Ground Wire	Yes
Cable Length (ft.)	20
Cable Gauge	10
Cable Connection	Alligator Clips

Assembled Product Height x Width x Depth (in.)	N/A x N/A x 12.5
Assembled Product Weight (lbs.)	21.4
Package Height x Width x Depth (in.)	10 x 21.81 x 19.81
Gross Weight (lbs.)	49.500 lbs
