QP Diesel Fuel Transfer Pumps

Aussie Pumps QP Diesel Fuel Transfer Pumps

High performance and durability are offered by the Aussie QP Fuel Master line of self-priming fuel transfer pumps operated by Honda and Yanmar engines. Transfer of diesel fuel oils is safe and leak-free thanks to Viton seals.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Five year pump end warranty
Primes fast from 7.6 metres
Honda petrol or Yanmar diesel engines
Single piece, heavy duty closed or open impeller
Replaceable flanged suction port & discharge elbow
Big belly body… for fast priming & extra performance
Marine grade aluminium body
Easy access priming port
Optional spark arrester

Great quality … use with confidence
Ready to pump in the minimum amount of time
Tried and proven with established service networks throughout the world
Pumps more fuel at high pressure
Easy to service check valve, allows for option of 2” or 3” ports to be fitted
Larger passages mean more efficiency & lower fuel costs
Corrosion resistant, long life
Convenient & safer
For added safety

Honda Petrol Drive (3 year GX engine warranty)

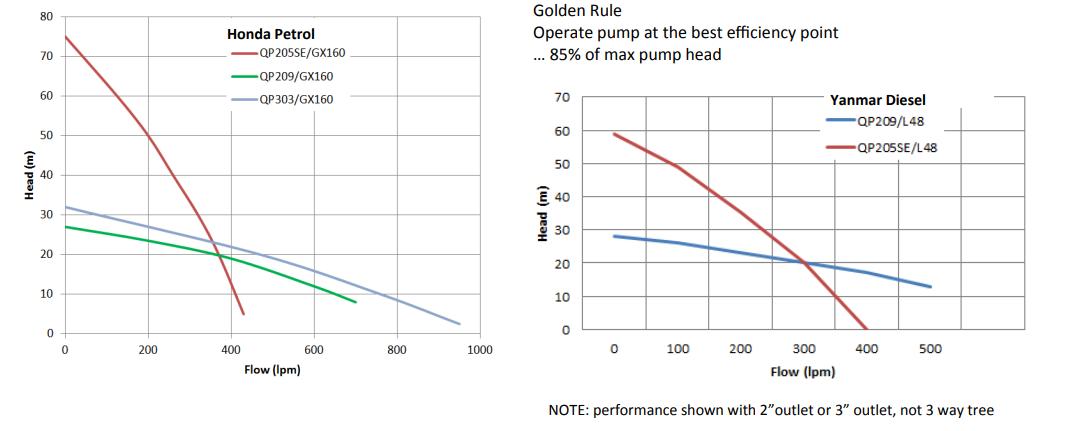

Inlet/Outlet	Model		HP	Pump PSI	Max Head (m)	Max Flow (lpm)	Frame
2” inlet 3 way outlet 2 x 1”& 1 x 1½”	Fuel Chief Honda	QP205SE	5.5 or 6.5	107	75	450	skids & handle
2” inlet 3 way outlet 2 x 1”& 1 x 1½”	Fuel Master 2 Honda	QP209	5.5	47	33	800	roll frame
3” x 3”	Fuel Master 3 Honda	QP303	5.5	45	32	1000	roll frame
3” x 3”	Fuel Master 3 Honda	QP303	6.5	45	32	1000	roll frame

Yanmar Diesel Drive (2 year engine warranty)

Inlet/Outlet	Model		HP	Pump PSI	Max Head (m)	Max Flow (lpm)

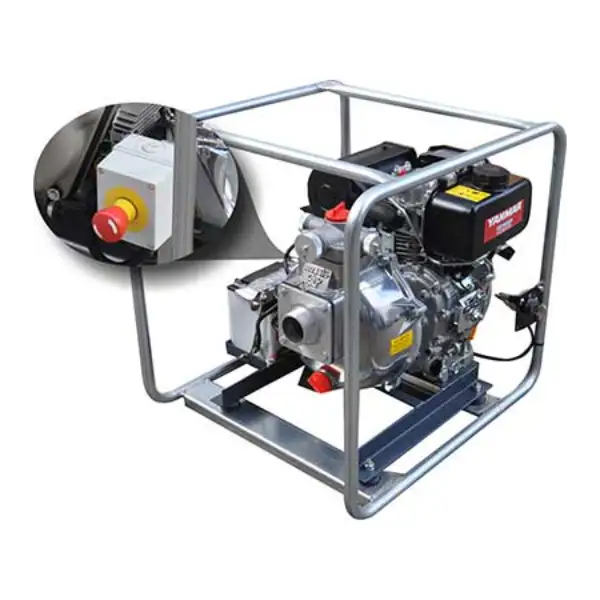

2” inlet 3 way outlet 2 x 1”& 1 x 1½”	Fuel Chief Yanmar	QP205SE L48	4.8	85	60	400
2” inlet 3 way outlet 2 x 1”& 1 x 1½”	Fuel Master Yanmar	QP209 L48		40	28^#	700^#
3” x 3”	Fuel Master 3” Yanmar	QP303 L48		43	30	1050

Front case	Marine grade aluminium
Volute	Marine grade aluminium
Back plate	Marine grade aluminium
Mechanical seal	Viton
Outlet	Marine grade aluminium
Casing bolts	Zinc plated steel
Check valve	Viton
Priming & drain plugs	Polycarbonate
Casing, priming & drain plug o-rings	Viton
Finish	Brushed aluminium
Impeller	Marine grade aluminium, closed type

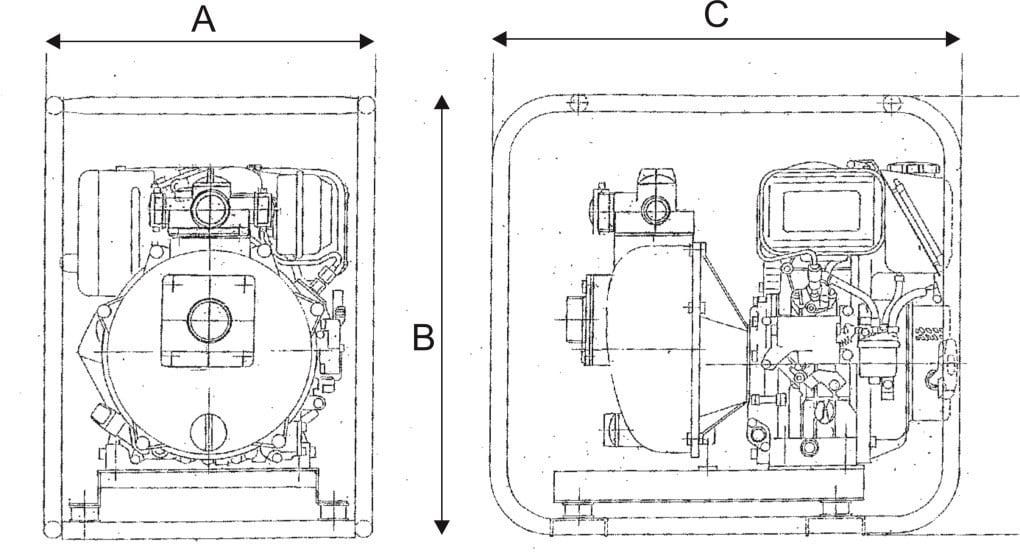

Basic Models (with full frame, no solenoid)	Engine	A Width (mm)	B Height (mm)	C Length (mm)	Weight (kg)
Fuel Master Honda 2”	GX160	542	459	523	30
Fuel Master Honda 3”	GX160	542	459	523	30
Fuel Chief QP205SE Yanmar	L48	445	510	550	58
Fuel Master QP209 Yanmar	L48	445	510	550	58
Models (with skids & handle)
Fuel Chief Honda	GX160 or GX200	393	478	491	30
