3" X 1-½” Petroleum 180 End Suction Centrifugal Pump

MP Pumps 3" X 1-½” Petroleum 180 End Suction Centrifugal Pump

The MP Petroleum 180 series, which is specifically made for fluids based on petroleum, comes in three different models: SO 180, SG 180, and SE 180.

The versions are also offered as PumPAKs® and are made to close-couple to 215JP frame electric motors. Pedestal, hydraulic, and diesel-engine drives are other mounting choices.

rotation of the pump in 90° increments.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Suction And Discharge: 3" x 1 1 /2" 150# flange
Flow: Up to 320 GPM
Head: Feet Up to 160'
Impeller: SE 180 - enclosed cast iron, SG 180 - enclosed aluminum, SO 180 - enclosed cast iron
Motor: Up to 15 HP

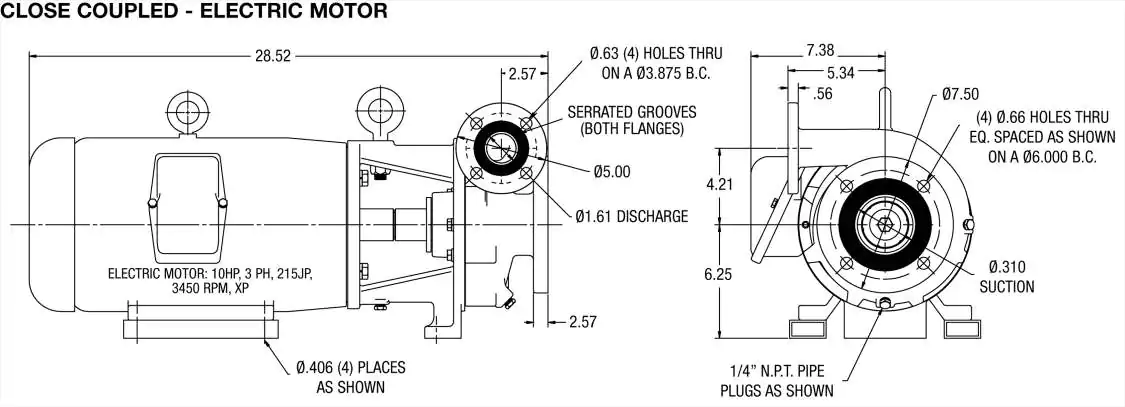

Drive Options: Close coupled 215JP, Pedestal, PumPAK® (without motor)
Seal: SE 180 . . Type 2 Viton/Carbon/Silicon Carbide/SS, SG 180. . Type 2 Viton/Carbon/Silicon Carbide/SS, SO 180.. Type 21 Viton/Carbon/NiResist/SS
Compatible For: SE 180 - Ethanol, E 85, SG 180 - Gasoline, Avgas, Kerosene, Jet A/8, SO 180 - Biodiesel, Fuel Oil, Diesel
Mounting Options: SE 180 - Explosion proof Class 1 Group D, SG 180 - Explosion Proof Class 1 Group D, SO 180 - TEFC

Agricultural
Industrial
Marine
OEM

Non-spark clamp

ITEM NO.	PART NO.	DESCRIPTION	QTY.	ITEM NO.	PART NO.	DESCRIPTION	QTY.
1	21255	PIPE PLUG - S.S.- 1/8" N.P.T.	2	*9	35651	SEAL - 1.5" - TYPE 2 - CAR I SIC I VIT	1
2	31492	HOUSING - DUCTILE IRON	1	10	35652	ADAPTER - DUCTILE IRON	1
*3	25662	GASKET - KLINGERSIL	1	11	21266	LOCKWASHER - S.S. - 3/8"	10
4	21261	STUD - S.S. - 3/8-16	6	12	21268	HEX NUT - S.S. - 3/8-16	6
5	22655	JAM NUT - S.S.- 5/8-18	1	13	21259	CAPSCREW - S.S. - 3/8-16	4
6	27027	IMPELLER - CAST IRON - 05.96	1	14	35649	CLAMP - B - 1.0"	1
7	22700	DRIVE SLEEVE - S.S. - 1.0"	1	15	26163	PEDESTAL ASSEMBLY	1
8	21762	#8 WOODRUFF KEY - S.S.	1
