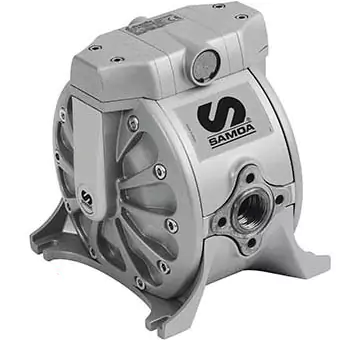

1" Pneumatic Double Diaphragm Pump

Samoa 1" AODD Pump, DF100, SS-PTFE-SS

Dosing, spraying, transferring, evacuating, and spreading a range of fluids are all possible using air-operated double diaphragm pumps. It may be used with fluids of a higher viscosity thanks to stainless steel balls. Perfect for typical applications requiring medium flow rates. extremely durable metal pumps made for the most demanding applications. This particular model is an Ex II2 GD IIB/IIC 95 °C certified ATEX pump that is completely groundable.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Technical Data

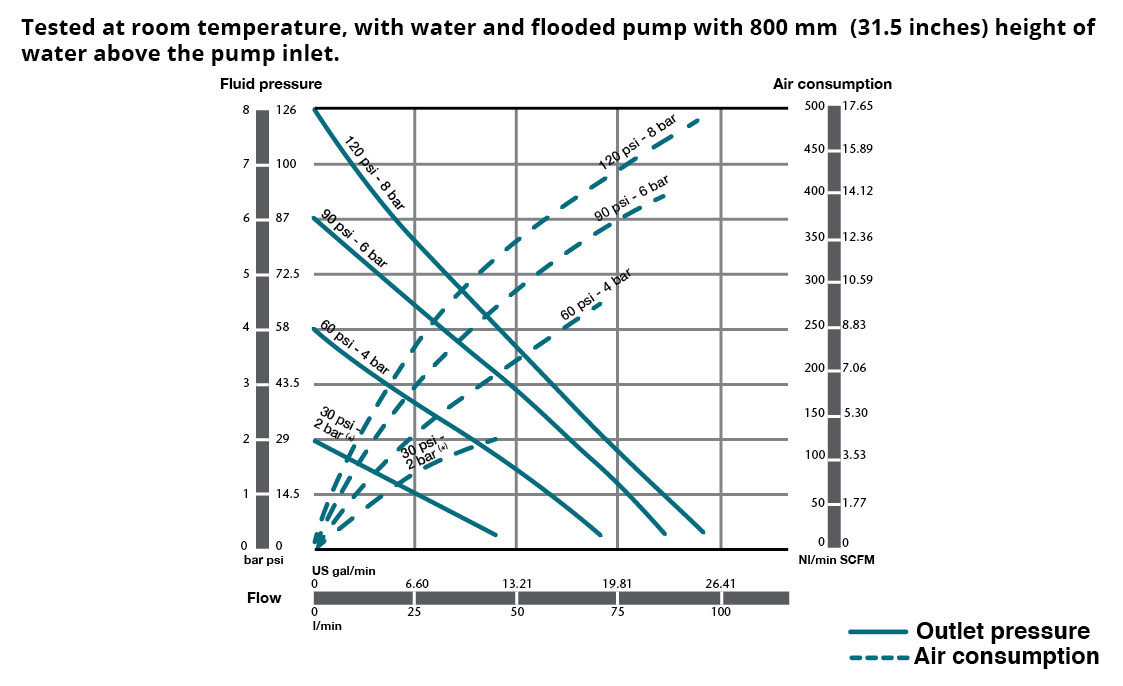

Capacity Chart
Dimension
Model Box

Fluid inlet	1" BSP (F)
Fluids	Chemicals, Varnish, Solvent, Paint, Ink
Fluid outlet	1" BSP (F)
Maximum free flow delivery	100 l/min (28 gal/min)
Wetted materials	Stainless steel, Aluminium, PTFE, Stainless steel (AISI 316)
Solids in suspension maximum size	4 mm (0.18 ")
Maximum wet suction head	7 m (23 ft)
Air inlet	3/8" NPSM (F)
Maximum dry suction head	4.5 m (15 ft)
Air pressure operating range	1.5 - 8 bar (20 - 120 psi)
Pump size	1"
Weight	7.2 kg (16 lb)
Delivery per cycle	0.5 l (0.13 gal)
Certification	ATEX
Pressure ratio	1:1

Product code	Diaphragms	Balls	Seats	Other wetted materials	Air motor	Fluid Path
DF100AASTSTTBAS	PTFE	PTFE	Stainless steel (AISI 316)	Stainless steel	Aluminium	Aluminium
DF100ASSTSTTBAS	PTFE	PTFE	Stainless steel (AISI 316)	Stainless steel	Aluminium	Stainless steel (AISI 316)
DF100ASSTSSTBAS	PTFE	Stainless steel (AISI 316)	Stainless steel (AISI 316)	Stainless steel	Aluminium	Stainless steel (AISI 316)
DF100AASVSTHBAS	Hytrel	PTFE	Stainless steel (AISI 316)	Stainless steel	Aluminium	Aluminium
DF100AASESTMBAS	Santoprene	PTFE	Stainless steel (AISI 316)	Stainless steel	Aluminium	Aluminium
DF100AASNSNNBAS	NBR	NBR	Stainless steel (AISI 316)	Stainless steel	Aluminium	Aluminium
DF100AASTSSTBAS	PTFE	Stainless steel (AISI 316)	Stainless steel (AISI 316)	Stainless steel	Aluminium	Aluminium
