ND500 Multido manlid

Perolo ND500 Multido manlid

ND500 MultidoTM manlids are available in a variety of sizes to fit tank containers, road tankers, and storage tanks for liquid chemical and food goods. For ISO tank containers, low-profile solutions or standard height straight neckrings for road tankers are the most popular choices.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

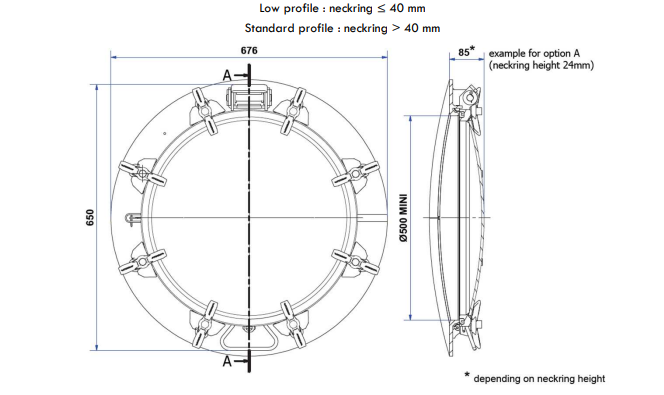

Nominal diameter	500 mm (20")
Weight	35.50 Kg for 21mm Neckring
Fastening points	6 or 8
Working Pressure	2 Bar to 4 Bar - other on request
Test Pressure	3 Bar to 6 Bar
Working Temperature	-40° to + 200°C

ADR / RID / IMDG / ASME / EN14025/ PED compliant on request
Lloyd's Register

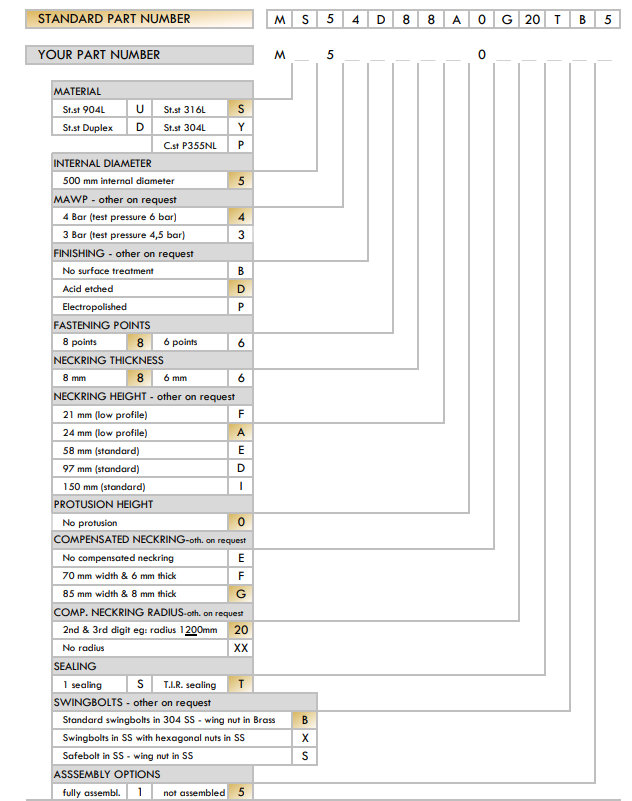

Coverlid seal PTFE/EPDM	11 13 75 00 19
Swingbolt ass. (58mm)	12 93 86 92 00
Swingbolt ass. (83mm)	12 93 86 91 00
Hinge kit	12 13 68 91 00
8 points low profile coverlid with TIR (316L)	CMS554D8ST
6 points standard coverlid no TIR (316L)	CMS554D6DS

Made of (material)	316L / 1.4404 stainless steel manlid
Seal material	seal not included
Neckring height	from 21 to 200 mm - Other on request
Neckring thickness	6 or 8 mm - Other on request
Fastening	Swingbolts with captive wing nuts
Perfect tightness	Trapezoïdal seal groove - Seal 14x14
