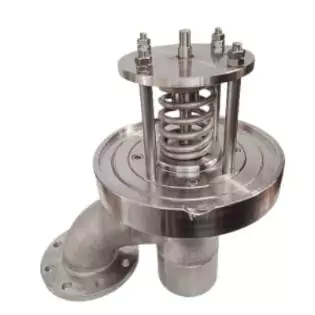

Perolo 5″/4″ Hydraulic Footvalve
The Perolo 5″/4″ hydraulic footvalve is designed to be used as a footvalve. It is Hydraulically operated.
-
Original Products -
Warranty Against Defects -
Returns & Refunds Policy -
Ships Worldwide -
Dedicate Support
- Specifications
- Conformity & Certification
- Standard Features
- Accessories
- Codification

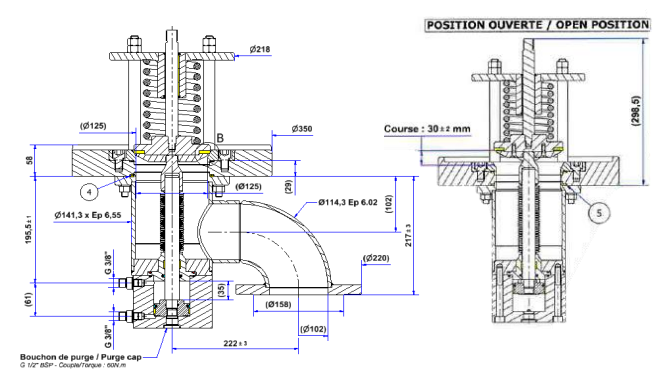

- Dimensions
| Nominal diameter | 100mm (4") |
| Weight | 78 Kg |
| Inlet flange | 8x Ø14 on a 178 PCD (external FV) |
| Outlet flange | 8x Ø18 on a 180 PCD (external FV) |
| Working pressure | 3 bar |
| Test pressure | 4,5 bar |
| Working temperature | -20° to +165°C |
- EN 14433:2014
- Approved by : A-C-I
| Made of (material) | 316L / 1.4404 stainless steel |
| Body length | 280mm |
| O'rings material | FEP/ SILICONE |
| Guiding material | PTFE |
| Operating | Hydraulically |
|
Seal PTFE |
19 11 65 90 01 |
|
Studs kit |
19 11 71 90 00 |
|
Internal footvalve |
19 11 65 00 00 |
|
Weld-in-flange |
19 11 71 00 01 |
|
External footvalve |
19 11 67 00 00 |
