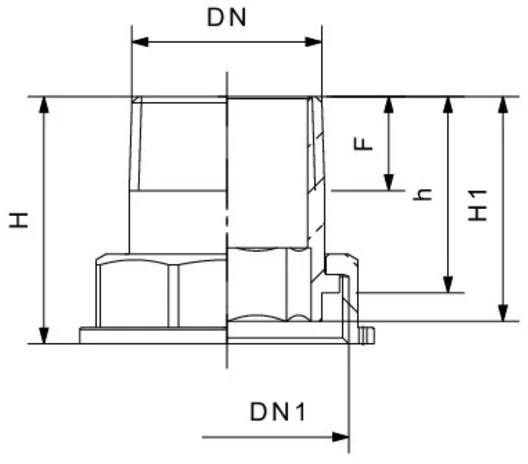

DNxDN1

Codice

H

h

F

H1

KG

p/box

3/4" x 1"1/4

078100000231

50,5

39

20

45

0,185

20

1" x 1"1/4

078100000272

50,5

39

20

45

0,191

20

1"1/2 x 2"

078100000350

60

47

22

53

0,464

10

2" x 2"1/2

078100000393

69

54,5

27

61,5

0,729

10

Connection

Limit Notes

M: EN 10226-1 R

Swivel nut ISO 228/1

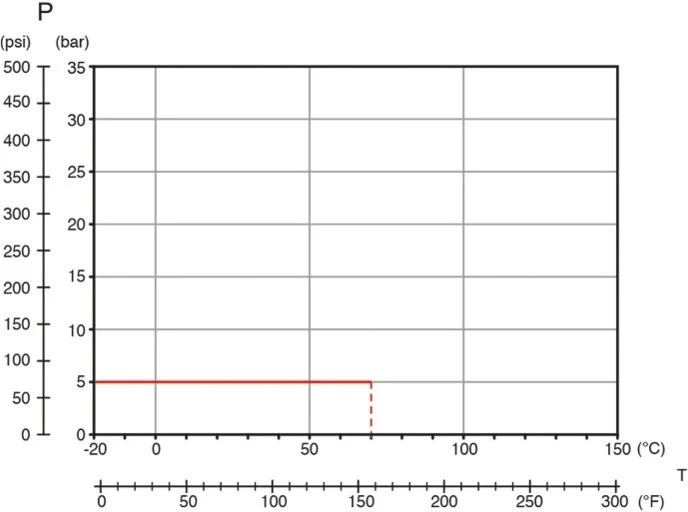

-20°C (without liquid) +60°C

The max.working pressure (PN) means at a room temperature of about 23°C.
