1690 Nozzle - Husky UAE

Husky 1690 Nozzle

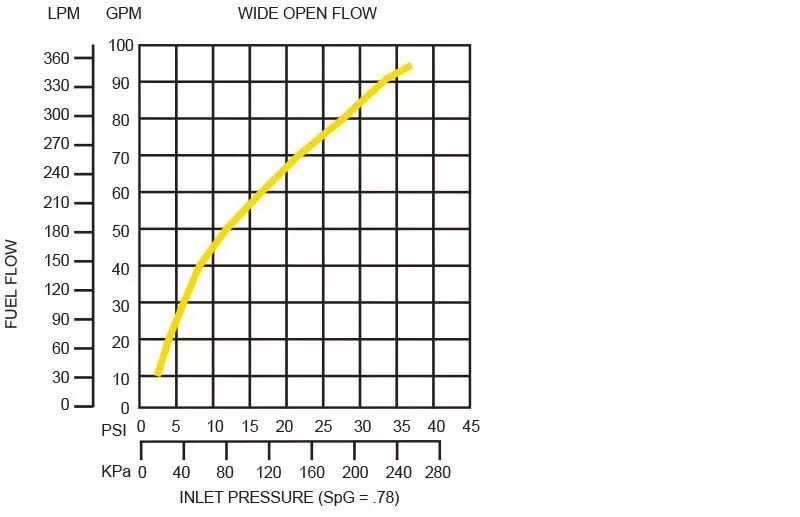

Compared to other similar nozzles, the high volume automated shut-off nozzle weights 30% less and offers 100 gpm. With a two-position hold open latch, the 1½" heavy-duty diesel cold-weather nozzle work much better.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Contains a poppet disc seal, rated at -40˚F/C (exceeding the UL standard of -20˚F / -29˚C) to prevent fuel leakage from the main seal in extreme cold weather.
Nozzle designed with extra large hand opening to accommodate gloves or mittens.
Check valve is in nozzle body, not the spout, for inexpensive and fast spout replacement.
Two position hold open latch.
Self-adjusting stem packing - no field adjustment is required.
Automatic shut-off with dual poppets for easy opening.
Right angle design allows nozzle to “fit” close to walls and corners.
Cast-in protective standoffs provide durability with rough usage.

Body: Die Cast Aluminum Body
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One-piece contoured steel
Inlet: 1½” / 38.1 mm NPT Spout: 1-3/8” / 34.9 mm O.D.

New Nozzles

MODEL NO.	DESCRIPTION	SHIPPING WEIGHT LBS (KG)
652310N^	with two position hold-open latch	3.96 (1.79)
		^ NOT LISTED

Rebuilt Nozzles

MODEL NO.	DESCRIPTION	SHIPPING WEIGHT LBS (KG)
879810N^	with two position hold-open latch	3.96 (1.79)
		^ NOT LISTED

Swivels

MODEL NO.	DESCRIPTION
005235	1¼ in / 32 mm F x 1¼ in / 32 mm M Inline Swivel
005240	1¼ in / 32 mm F x 1½ in / 38 mm M Inline Swivel
005265	1½ in / 38 mm F x 1¼ in / 32 mm M Inline Swivel
005266	1½ in / 38 mm F x 1½ in / 38 mm M Inline Swivel

Spouts

MODEL NO.	DESCRIPTION
004889	Spout without shear groove

Pressure/Vacuum Vents

MODEL NO.	DESCRIPTION
004620	2” Slip-On Pressure Vacuum Vent
004885	2” Thread-On Pressure Vacuum Vent - NPT
005885	2” Thread-On Pressure Vacuum Vent with Internal Screen - NPT
