W22Xdb IE2 7.5 kW 4P Electric Motor

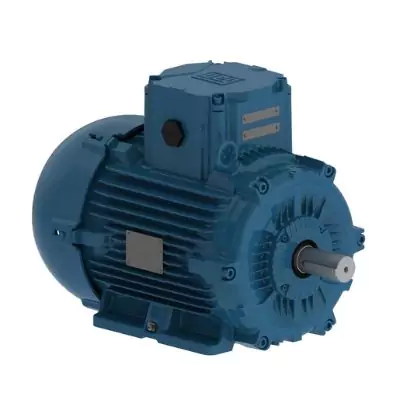

WEG W22Xdb IE2 7.5 kW 4P Electric Motors

The W22Xdb series represents a development in the market for products used in classified areas and offers high levels of efficiency, energy savings, low operational costs, prolonged lifetime, low maintenance, and guaranteed safety.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Standard	IEC 60034-1
Frequency	50 Hz
Voltage	380-400-415/660-690//460 V
Number of poles	4
Degree of Protection	IP56
Synchronous speed	1500 rpm
Output rating	7.5 kW
Mounting	Foot-mounted
Flange	Without
Mounting	B3T
Terminal box¹	Top
Enclosure	IC411 - TEFC

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Space Heater Voltage	200 - 240 V
Main terminal box hole	M32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 205P (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Joints Seal	Lumomoly
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 150°C
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6

380/660 V 50 Hz 4P

Frame	132S/M
Output	7.5 kW (10 HP)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380/660 V
Rated current	14.8/8.52 A
L. R. Amperes	107/61.4 A
LRC	7.2
No load current	6.40/3.68 A
Rated torque	36.2 ft.lb
Locked rotor torque	200 %
Breakdown torque	260 %
Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	246 lb

400/690 V 50 Hz 4P

Frame	132S/M
Output	7.5 kW (10 HP)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400/690 V
Rated current	14.5/8.41 A
L. R. Amperes	113/65.6 A
LRC	7.8
No load current	7.30/4.23 A
Rated torque	36.1 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	246 lb

415 V 50 Hz 4P

Frame	132S/M
Output	7.5 kW (10 HP)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	14.5 A
L. R. Amperes	117 A
LRC	8.1
No load current	8.00 A
Rated torque	36.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	330 %
Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	246 lb

460 V 60 Hz 4P

Frame	132S/M
Output	7.5 kW (10 HP)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	12.6 A
L. R. Amperes	106 A
LRC	8.4
No load current	6.50 A
Rated torque	29.9 ft.lb
Locked rotor torque	240 %
Breakdown torque	350 %
Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	1.25 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	246 lb

380/660 V 50 Hz 4P

50%	75%	100%
88.4	88.7	88.7

400/690 V 50 Hz 4P

50%	75%	100%
88.0	88.7	88.7

415 V 50 Hz 4P

50%	75%	100%
87.7	89.0	89.0

460 V 60 Hz 4P

50%	75%	100%
88.5	90.2	90.2

380/660 V 50 Hz 4P

50%	75%	100%
0.73	0.83	0.87

400/690 V 50 Hz 4P

50%	75%	100%
0.66	0.79	0.84

415 V 50 Hz 4P

50%	75%	100%
0.61	0.75	0.81

460 V 60 Hz 4P

50%	75%	100%
0.63	0.76	0.83

	Drive End	Non Drive End
Bearing type	6308 ZZ	6207 ZZ
Sealing	Retentor com mola	Lip Seal
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM
